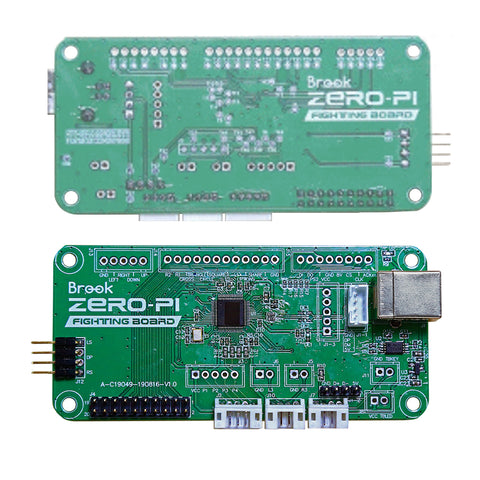

Brook Zero PI Fighting Board PS/PS2/PS3/Retro

Brook Zero PI Fighting Board PS/PS2/PS3/Retro

Time to build an arcade stick for your Pi! The ZERO-Pi fighting board supports using wired fighting sticks on PS PS2 PS3 PC(X-Input) and the Retro Gaming Emulator. It also supports LED, and turbo function. Fully-Compatible with BROOK Fighting Cable. Also compatible with Brook PS3 to PS4 Super Converter (NOT incl.).

Features:

- Support PS3 and PC control via USB output- Support PS2, PSX control via J15 connection

- Support Retro Gaming Emulator

- Console auto-detection

- XINPUT Mode (available when connecting to PC and software that utilizes this controller mode)

- Built-in SOCD cleaner (SOCD mode is forward+back=neutral; cannot be changed)

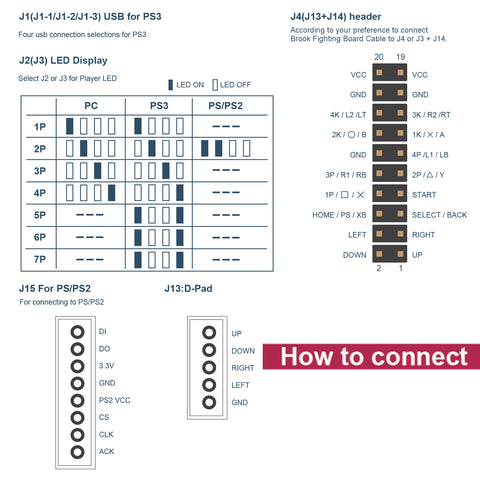

- 20 pin (2x10) housing for 20-Pin Joystick/Button Harness, future expansion or pass-through to other PCBA

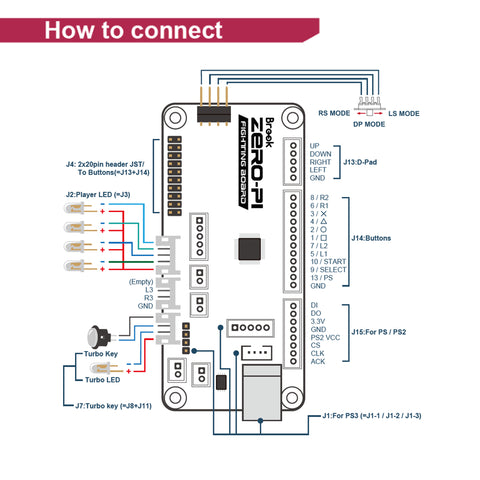

- JST and pin headers available for VCC, player 1-4 LEDs, RS, DP and LS mode, Turbo button, and alternative USB output connector.

- Turbo Function

- Support Player LEDs

- Effortless installation

- Upgradable firmware

- 20-pin harness- 5-Pin

- HitBox Conversion Harness

- Custom Angled 7.5" USB Type A to B Cable

- Female .187" to Male .110" Conversion Wire

- .187 to 5-pin Conversion Harness

- 10" USB Type A to B Cable

Package Includes:

• 1x Brook Zero PI Fighting Board
