Arcade Game VGA to CGA RGBS/CVBS/S-VIDEO Video Converter Board GBS-8100

Arcade Game VGA to RGBS CGA CVBS S-Video Video Output Board

With this adapter board you will be able to send the video from your vga output to a RGBS/CGA/CVBS and S-Video compatible screens!

Features:

• Power Supply Input: DC 5V/2A 6.3mm

• Supports VGA/SVGA/XGA/SXGA(640*480,800*600,1024*768,1280*1024) signal input

• Supports VGA output by pass

• CGA signal output(15K)

• Supports position and zoom control

• True digital 24-bit A/D converter for true 16.7-million color conversion

• English OSD Adjustment menu

• User controls (Menu Keys): Output Switch, Image Zoom, Image Position, Output adjust

• Model Number GBS-8100

Compatibility:

• Video/S-Video output

• CGA signal output(15K)

• Input signal 640 * 480 @ 60 / 72 / 75 80 / 85 Hz, 800 * 600 @ 60 / 72 / 75 80 / 85 Hz, 1024 * 768 @ 60 / 72 / 75 80Hz, 1280 * 1024 @ 60 / 72 / 75 Hz (Auto scan) P3


• Output Signal CGA: 640 * 480 P7 VGA: By Pass P4 Video: 480p NTSC and PAL P5 S-Video: 480p NTSC and PAL P6

• Supports NTSC and PAL

• Optional Power Supply:

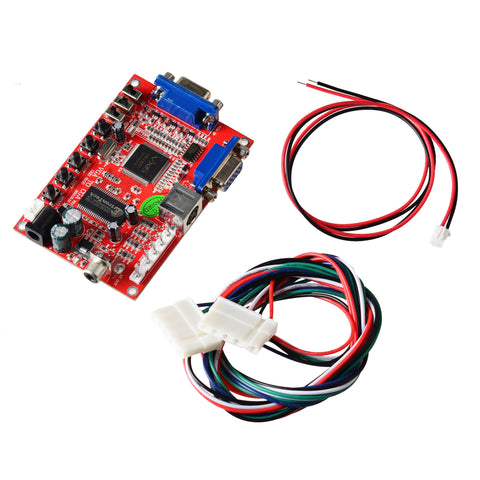

Package Includes:

• 1x Video Output Converter Board

• 1x Power supply wire

NOTE: Soldering required. Installation manual is NOT included.
